ASIC SDI Gate Driver 8945125484 for WABCO EBS

Name: ASIC 8945125484 — Solenoid Driver Interface for WABCO EBS
Brand: AMI Semiconductor (AMIS)
SKU: 8945125484
Price: 99.00 USD
Availability: InStock

Original AMI Semiconductor (AMIS) SDI gate driver, UK production, for WABCO EBS modulators (480 103 / 104 / 105) and central module 446 135 xxx 0. NOS from the Continental Silao supply chain. Not a pull. Not a remark. New, sealed production stock.

$99 Unit price USD

$699 10-unit pack

In Stock Units in stock

30d Guarantee

🛒 Buy Now — $99 USD 💬 Order via WhatsApp

P/N: 446 135 xxx 0 & 446 135 xxx 0 · Manufacturer: AMI Semiconductor (AMIS) — UK production

Chip ASIC 8945125484 original AMIS con marcaje — frente

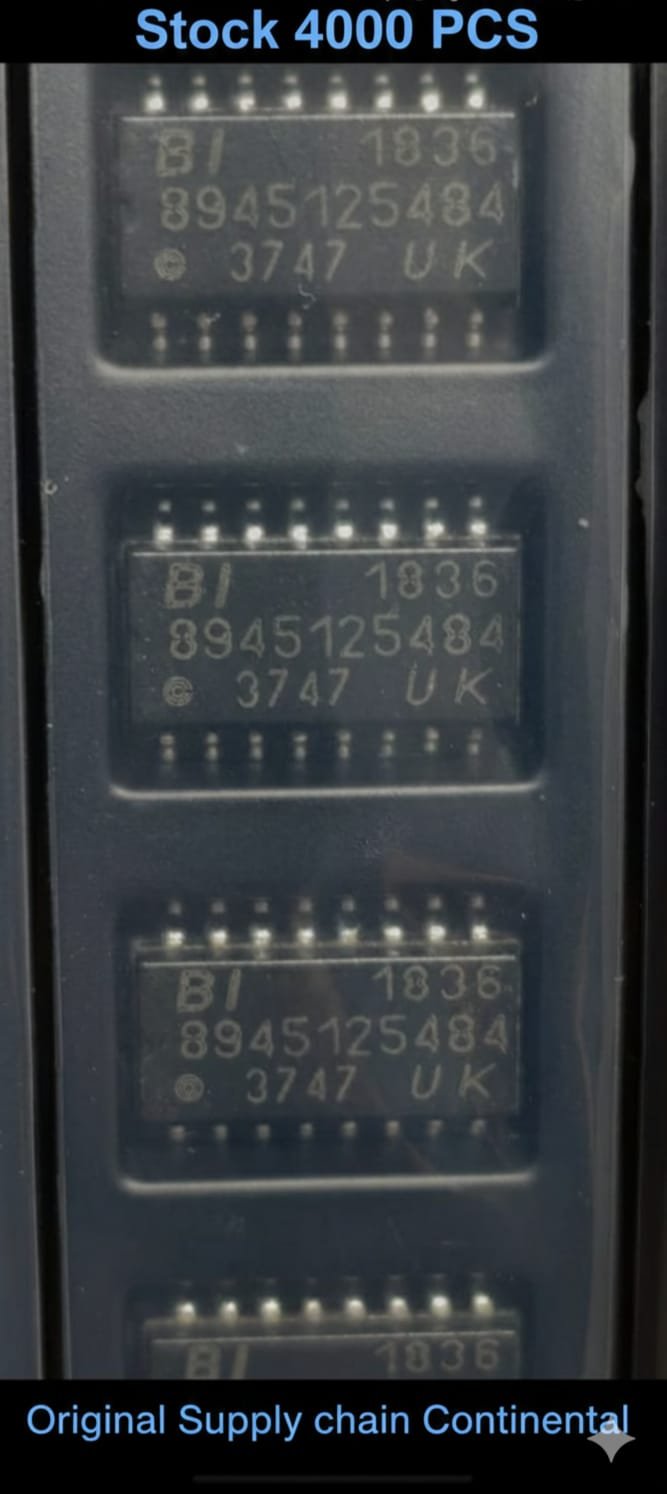

NEW · ORIGINAL

SKU: 8945125484 | Central Module P/N: 446 135 xxx 0

$99 USD 10-pack: $699

In Stock · Ships within 48h

🛒 Buy Now — Secure Checkout 🟢 Order on WhatsApp

Technical Function

What Does This Chip Actually Do?

Understanding the architecture prevents misdiagnosis. The 8945125484 is a Power Driver ASIC — it controls the power stage, not the solenoids directly.

⚡ Power Driver / Gate Driver ASIC

The 8945125484 manages the power supply rails inside the WABCO EBS modulator. It drives the gates of the power FETs, monitors solenoid integrity (normal/open/short), and shuts the FET down on fault. When this chip fails, the ECU loses stable power — causing CAN errors, sensor faults, or complete modulator dropout.

🔌 BTS Chips Handle Solenoids — Not This Chip

The individual inlet/outlet solenoids are switched by BTS high-side drivers (BTS621, BTS724, etc.). This ASIC provides the power architecture that feeds those BTS drivers. Do not confuse the two — replacing BTS chips for a 8945125484 failure, or vice versa, will not fix the fault.

Diagnostic Tip

Faults pointing to CAN communication loss with modulator, supply voltage out of range, or internal electronics failure in WABCO TOOLBOX are the primary indicators of a failed 8945125484. If solenoid-specific faults (e.g., individual valve open/short) are present alone, check BTS drivers first.

Chip Identification
Part Number	8945125484
Internal SKU	8945125484
Manufacturer	AMI Semiconductor (AMIS) — UK production
Type	ASIC — Solenoid Driver Interface (SDI) / gate driver
Package	SOP-16 (Small Outline Package, 16-pin)
Condition	New — NOS, never soldered
Unit price	$99 USD
10-unit pack	$699 USD (save $291)

Application
System	WABCO EBS — Electronic Brake System
Modulator Gen1	480 103 xxx
Modulator Gen2	480 104 xxx
Modulator Gen3	480 105 xxx
Validation	VCC=5.0V±0.2V · outputs=0.5–0.7V in diode mode and symmetric · diagnostic pin 9=2.5–3.5V OK
Tool required	WABCO TOOLBOX 12+
Soldering	Rework station (hot air)
Stock	Immediate availability

Vehicle Compatibility

Compatibility Is by WABCO Module — Not by Truck Brand

Confirm the WABCO modulator part number first. The only field validation is DAF CF85 / WABCO EBS Gen2 / 480 104. Knorr-Bremse systems are NOT compatible.

Brand	Model / Series	Years	EBS Gen	Typical Modulator
Mercedes-Benz	Actros MP2 / MP3	2002–2011	Gen1 / Gen2	480 103 / 480 104
MAN	TGA / TGS / TGX	2000–2014	Gen1 / Gen2	480 103 / 480 104
Volvo	FH / FM (Gen2–Gen3)	2002–2012	Gen1 / Gen2	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator
DAF	CF / XF (95 / 105)	2001–2013	Gen1 / Gen2	480 103 / 480 104
Scania	P / G / R Series	2003–2013	Gen2 / Gen3	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator
Iveco	Stralis (AS / AT / AD)	2002–2012	Gen1 / Gen2	480 103 / 480 104
Renault	Premium (DXi)	2005–2013	Gen2	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator

* Always confirm your modulator P/N starts with 480 103, 480 104, or 480 105 before ordering. Knorr-Bremse is incompatible. Not sure?

Counterfeit Warning

The Market Is Flooded with Fakes

Remarked pull chips and clones look identical on the outside — but fail within weeks. Know how to tell the difference before you install anything.

✅ Original 8945125484 (Ours)

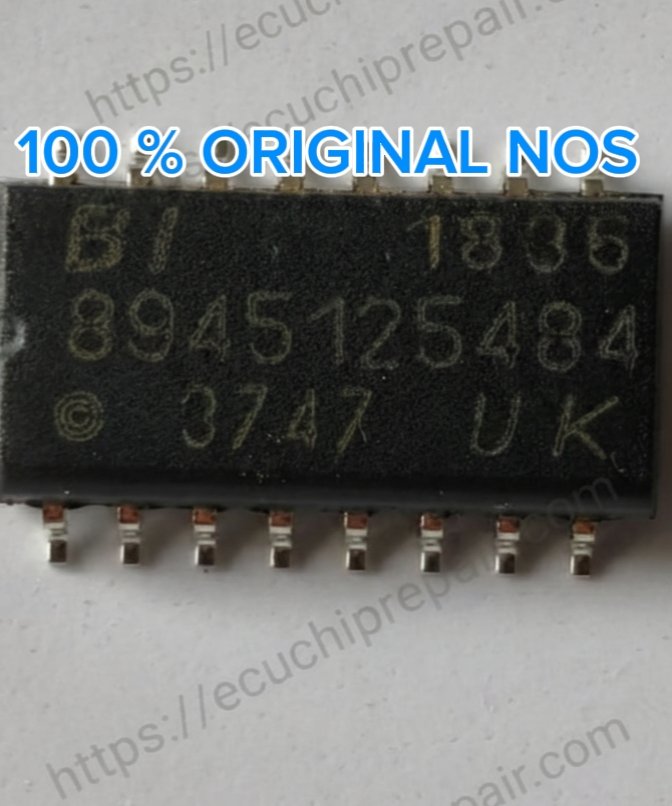

Chip original AMIS 8945125484 con marcaje correcto

✓ AMIS laser marking — sharp, no blur
✓ Outputs read 0.5–0.7V in diode mode and remain symmetric
✓ Uniform pin coplanarity — never soldered
✓ Date code traceable to production batch
✓ No epoxy residue on body or pins

✗ Remarked / Pull Chip (Fake)

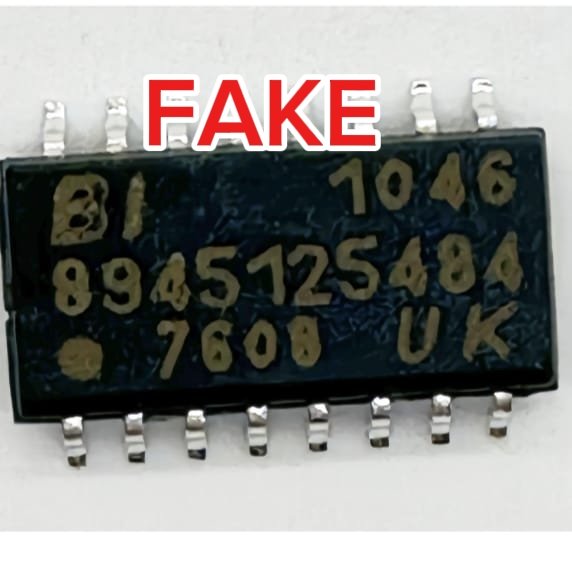

Chip falso remarcado — comparación con original

✗ Blurry or reprinted markings (laser + ink mix)
✗ Output readings lose symmetry or drift under heat
✗ Solder paste or epoxy residue on pins
✗ Pin coplanarity inconsistent — bent from desoldering
✗ No traceable lot code or date code

⚠ Used / Reclaimed Chips — AVOID

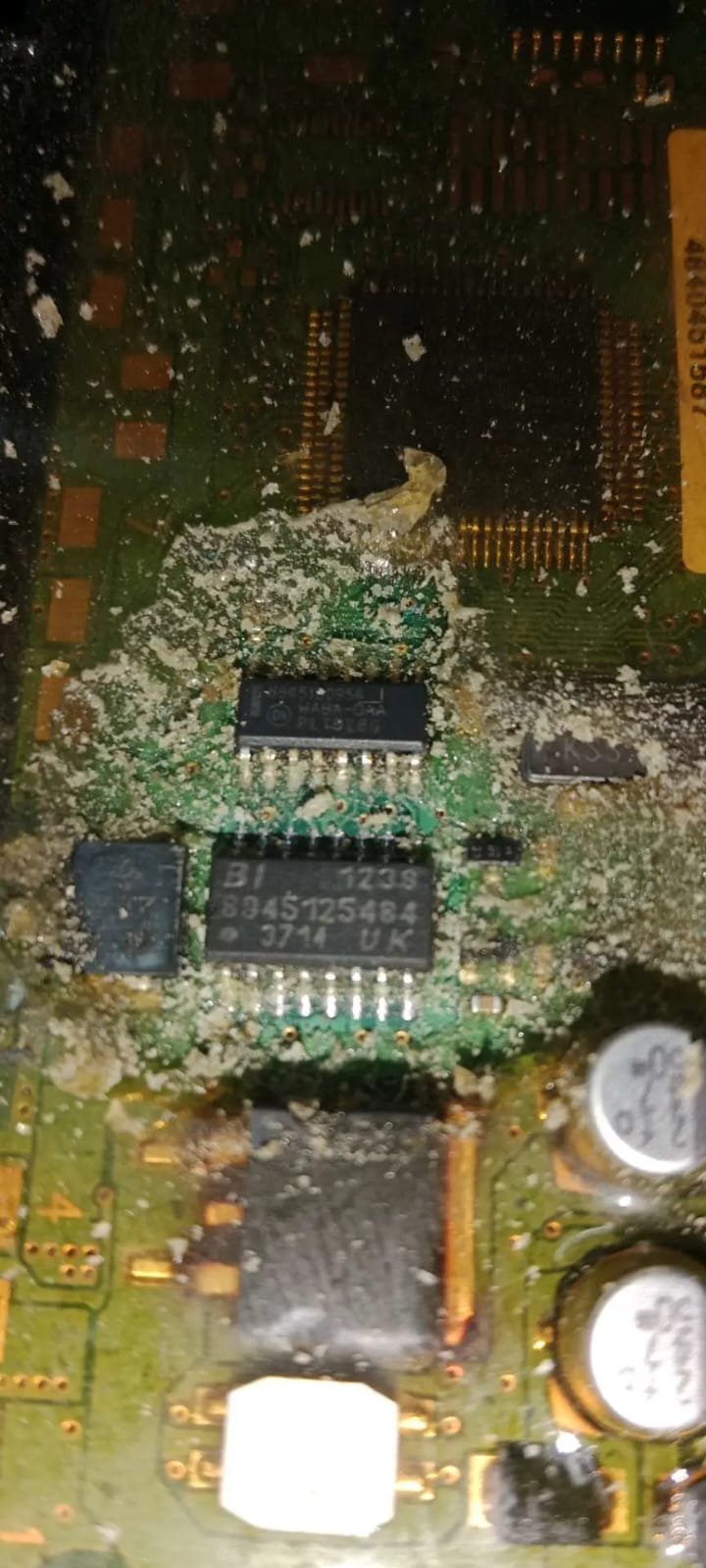

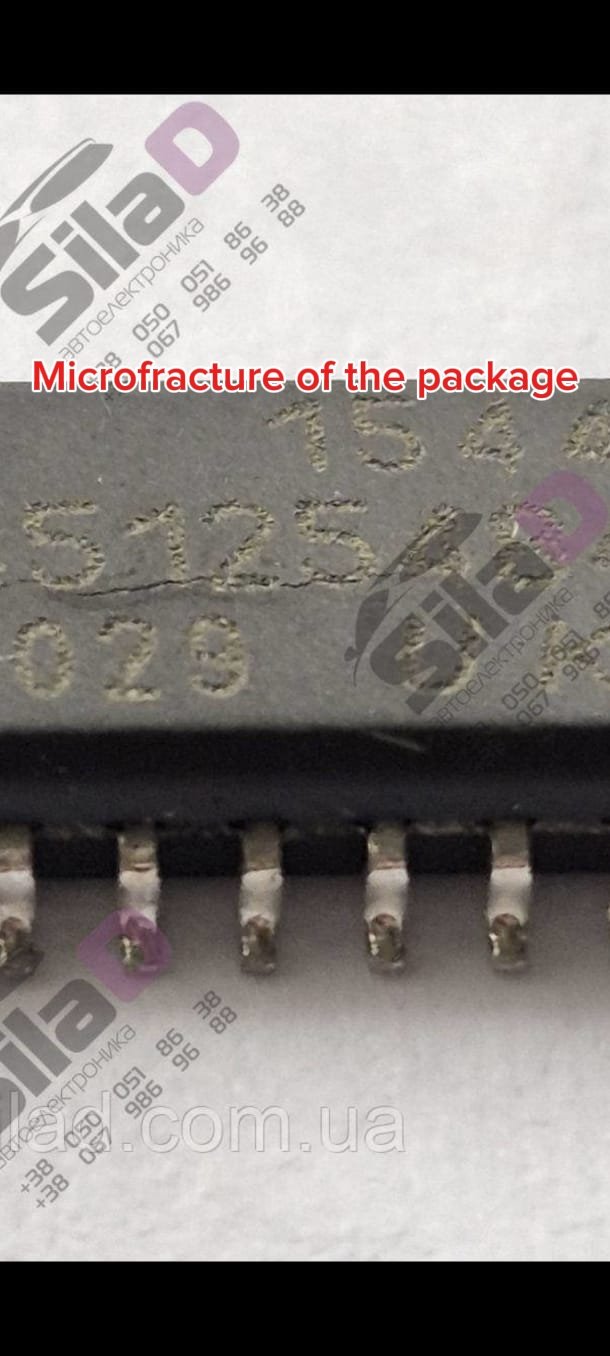

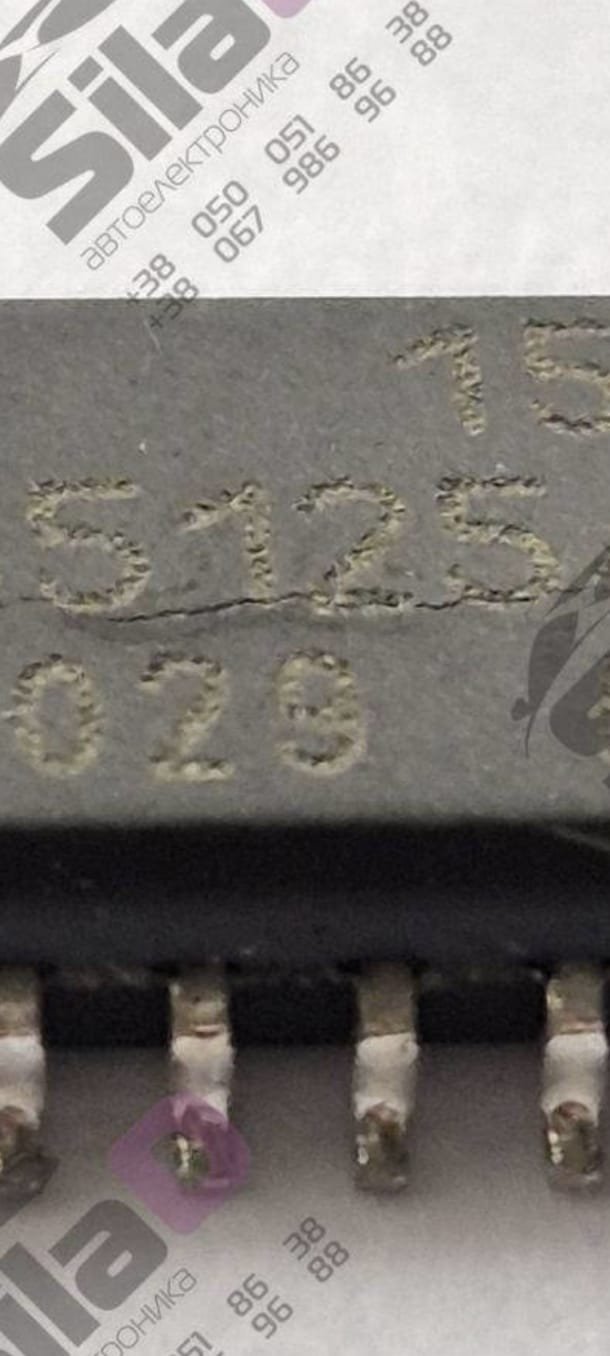

Thermally cracked chip — hidden damage common in reclaimed units

Used chips pulled from scrap ECUs are often thermally cracked and coated to hide damage. Buying "cheap" reused chips means installing a part that will fail again. We sell ONLY new, never-soldered NOS units — sealed Continental Silao supply chain.

🔬 How to Verify Any Chip Before Installing

Step 1 — Electrical validation: Verify VCC at 5.0V±0.2V. In diode mode, outputs should read 0.5–0.7V and remain symmetric between channels. Pin 9 diagnostic should read 2.5–3.5V when OK. The most common failure is loss of symmetry between outputs.

Step 2 — Visual marking check: Authentic AMIS chips have laser-engraved text — edges are sharp under 10× magnification. Reprinted fakes show ink bleed or double-print artifacts.

Step 3 — Pin inspection: All 16 pins must be coplanar. Any bent, oxidized, or flux-contaminated pins indicate a pull chip.

Step 4 — Functional test: After installation, verify with WABCO TOOLBOX — all supply voltages should be in nominal range and no internal electronics faults should remain.

FAQ

Frequently Asked Questions

Real objections from real technicians — answered straight.

Use electrical symmetry and visual inspection before you solder anything:

1. Electrical validation: VCC should be 5.0V±0.2V. Outputs should read 0.5–0.7V in diode mode and be symmetric between channels. Diagnostic pin 9 should read 2.5–3.5V OK. The most common failure is loss of symmetry between outputs.

2. Marking inspection: AMIS markings use laser engraving — not printing. Under a 10× loupe, the text edges are sharp and slightly recessed. Fakes use inkjet or thermal transfer — edges bleed or show pixel artifacts.

Our chips come from sealed original production stock, never removed from a PCB. You can also compare photos of the markings with the reference shots in the Fakes section above.

The chip works on any truck using a WABCO EBS modulator with P/N starting 480 103, 480 104, or 480 105. The modulator number is the authoritative check — not the truck brand.

Common applications after WABCO module verification:

Mercedes-Benz	Actros MP2 / MP3 (2002–2011)
MAN	TGA / TGS / TGX (2000–2014)
Volvo	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator
DAF	CF / XF 95 / XF 105 (2001–2013)
Scania	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator
Iveco	Stralis AS / AT / AD (2002–2012)
Renault	⚠ Often Knorr-Bremse (NOT compatible) — verify modulator

If your truck is not in this list or you are unsure:

This is a surface-mount ASIC (SOP-16 package). Required equipment:

Software	WABCO TOOLBOX 12 or later (for pre/post diagnostic)
Rework station	Hot air + regulated iron (recommend 350°C max on lead-free)
Flux	No-clean flux — mandatory for SOP-16 rework
Solder	63/37 tin-lead or SAC305 lead-free
Multimeter	For VCC and output symmetry validation
Microscope / loupe	10× minimum for pin inspection post-solder

If you do not have SMD rework experience, we recommend having an electronics repair shop install the chip. Bridged pins on an SOP-16 are recoverable but require skill.

We offer a 30-day replacement guarantee. If the chip is defective on arrival or fails within 30 days under normal use, we send a replacement at no cost.

Important: the guarantee covers chip defects. If the fault code remains after installation, it may indicate a different failed component (BTS driver, pressure sensor, CAN line). We recommend confirming the root cause with WABCO TOOLBOX before installation.

Yes. We ship worldwide via FedEx and DHL Express. Typical delivery times:

Europe	5–8 business days
North Africa / Middle East	6–10 business days
South America	7–12 business days
Southeast Asia	8–15 business days
Rest of world	7–15 business days

Tracking number provided within 48 hours of payment. Customs duties are the buyer's responsibility. Small electronics components typically clear customs without issues.

🛒 Get shipping quote on WhatsApp
